Products Description

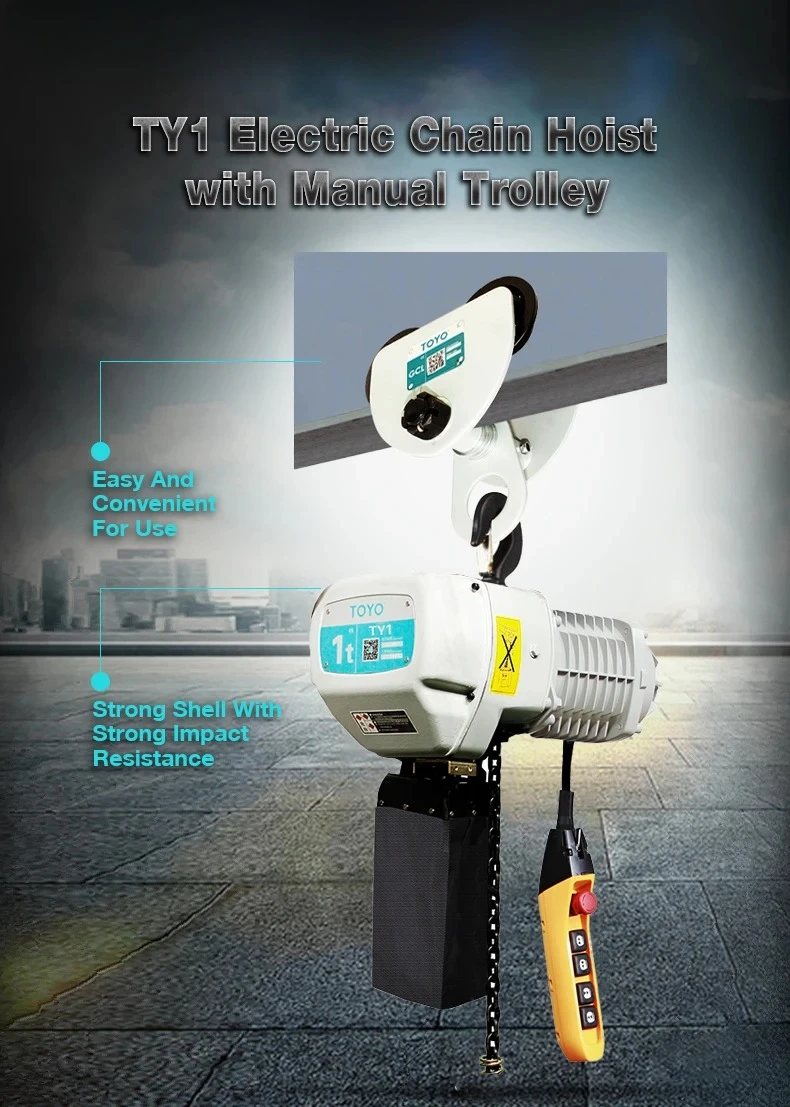

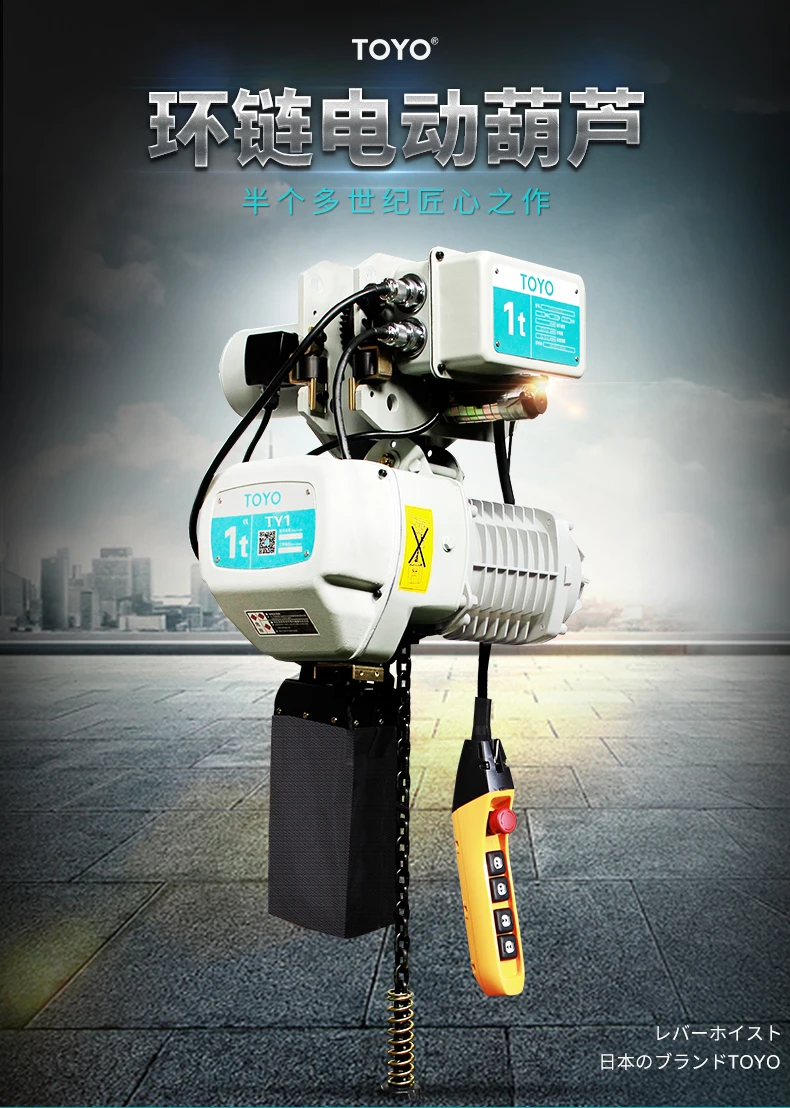

TY1 China Manufacture electric chain block 1 ton 2 ton 3 ton 5 ton Chain Electric Hoist With Hook

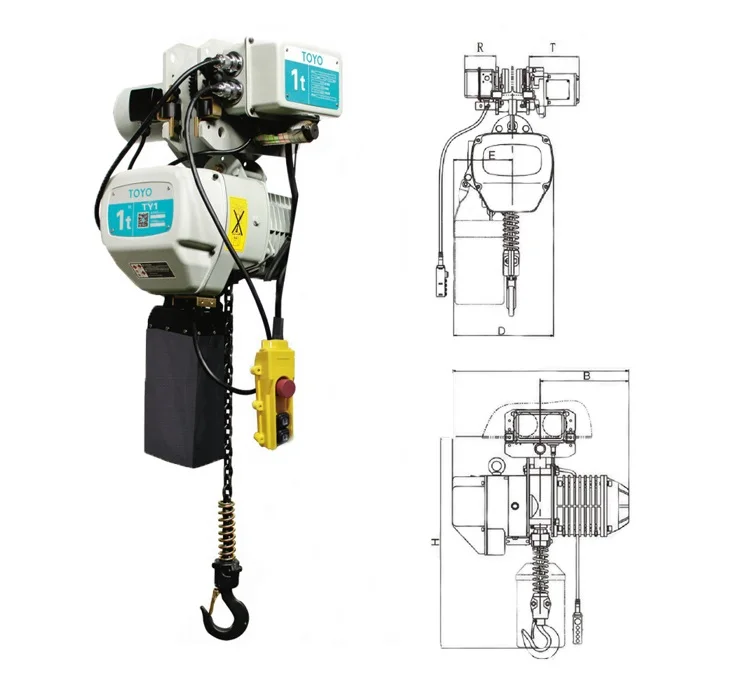

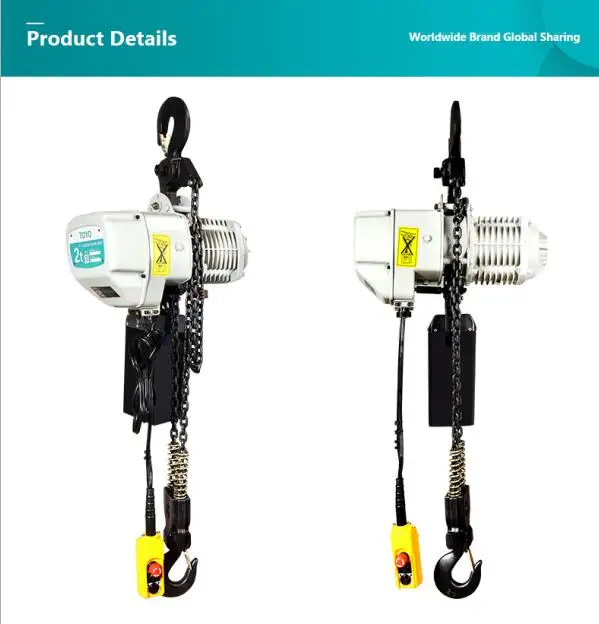

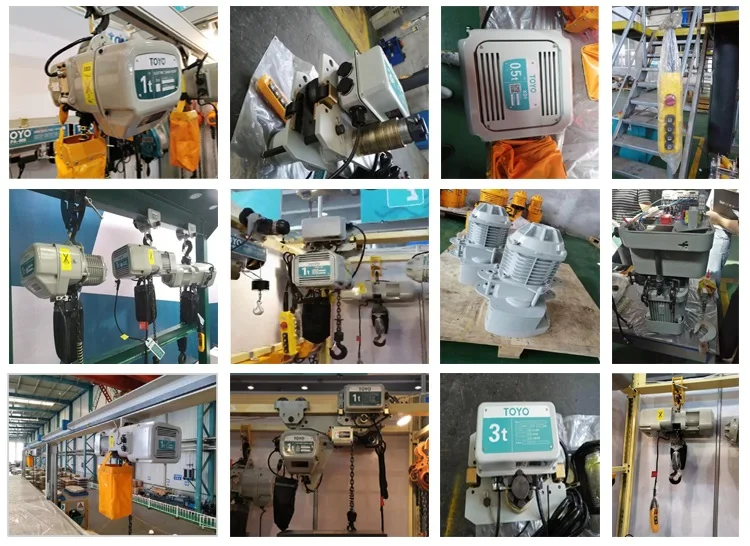

Details Images
Electric Hoist Advantages
(1)Practical And Reliable, Multi-Protection TOYO TY1 electric chain hoist is a new type of small lifting equipment. It is an ideal equipment for lifting, transporting, loading and unloading goods and working. It is more flexible and convenient to use in a small space workplace, safe and convenient, light weight, small size, high working level, good safety performance, high reliability and low failure rate. With an electric sports car, you can walk up and down the I-beam, usually in four directions: up, down, left and right. (2)Shell Attack Cast aluminum housing, sturdy and impact resistant, special heat dissipation design, more heat dissipation and lighter weight. The protection level is IP55, which is more applicable. (3)High-Strength Chain The chain reaches the international G80 grade, and can also be customized with a higher G100 grade. It adopts carbon black technology and has strong anti-corrosion effect and strong wear resistance. (4)Handle Button The standard handle feels comfortable and the buttons are simple and easy to operate. High quality lift switch, button controller control voltage with emergency stop button.
Specification
|
Model
|
TY1-Single Speed
|
|
|
|
|
|
|
|
|
||||||||
|
|
0.5-01S
|
01-01S
|
1.5-01S
|
02-01S
|
02-02S
|
03-01S
|
03-02S
|
03-03S
|
05-02S
|
||||||||
|
Capacity(t)
|
0.5t
|
1t
|
1.5t
|
2t
|
|
3t
|
|
|
5t
|
||||||||
|
Lifting speed (m/min)
|
7.2
|
6.6
|
8.8
|
6.6
|
3.3
|
5.4
|
4.4
|
2.2
|
2.7
|
||||||||
|
Motor power (KW)
|
0.8
|
1.5
|
3.0
|
3.0
|
1.5
|
3.0
|
3.0
|
1.5
|
3.0
|
||||||||
|
Rotation speed (r/min)
|
1440 r/min
|
|
|
|
|
|
|
|
|
||||||||
|
Insulation grade
|
F grade
|
|
|
|
|
|
|
|
|
||||||||
|
Power supply
|
3 phase, 200V-690V, 50/60Hz
|
|
|
|
|
|
|
|
|
||||||||
|
Control voltage
|
24V / 36V / 48V
|
|
|
|
|
|
|
|
|
||||||||
|
No.of chain
|
1
|
1
|
1
|
1
|
2
|
1
|
2
|
3
|
2
|
||||||||
|
Spec.of load chain
|
Φ6.3
|
Φ7.1
|
Φ10.0
|
Φ10.0
|
Φ7.1
|
Φ11.2
|
10.0
|
Φ7.1
|
Φ11.2
|
||||||||
|
Net weight (kg)
|
47
|
61
|
108
|
115
|
73
|
122
|
131
|
85
|
151
|
||||||||
|
Model
|
TY1-Dual Speed
|
|
|
|
|
|
|
|
|
||||||||
|
|
0.5-01D
|
01-01D
|
1.5-01D
|
02-01D
|
02-02D
|
03-01D
|
03-02D
|
03-03D
|
05-02D
|
||||||||
|
Capacity(t)
|
0.5t
|
1t
|
1.5t
|
2t
|
|
3t
|
|
|
5t
|
||||||||
|
Lifting speed (m/min)
|
7.2/2.4
|
6.9/2.3
|
9.0/3.0
|
6.9/2.3
|
3.3/1.1
|
5.4/1.8
|
4.5/1.5
|
2.4/0.8
|
2.7/0.9
|
||||||||
|
Motor power (KW)
|
0.8/0.27
|
1.8/0.6
|
3.0/1.0
|
3.0/1.0
|
1.8/0.6
|
3.0/1.0
|
3.0/1.0
|
1.8/0.6
|
3.0/1.0
|
||||||||
|
Rotation speed (r/min)
|
2880 / 960
|
|
|
|
|
|
|
|
|
||||||||
|
Insulation grade
|
F grade
|
|
|
|
|
|
|
|
|
||||||||
|
Power supply
|
3 phase, 200V-690V, 50/60Hz
|
|
|
|
|
|
|
|
|
||||||||
|
Control voltage
|
24V / 36V / 48V
|
|
|
|
|
|
|
|
|
||||||||
|
No.of chain
|
1
|
1
|
1
|
1
|
2
|
1
|
2
|
3
|
2
|
||||||||
|
Spec.of load chain
|
Φ6.3
|
Φ7.1
|
Φ10.0
|
Φ10.0
|
Φ7.1
|
Φ11.2
|
Φ10.0
|
Φ7.1
|
Φ11.2
|
||||||||
|
Net weight (kg)
|
54
|
74
|
144
|
150
|
86
|
159
|
168
|
102
|
184
|
||||||||
