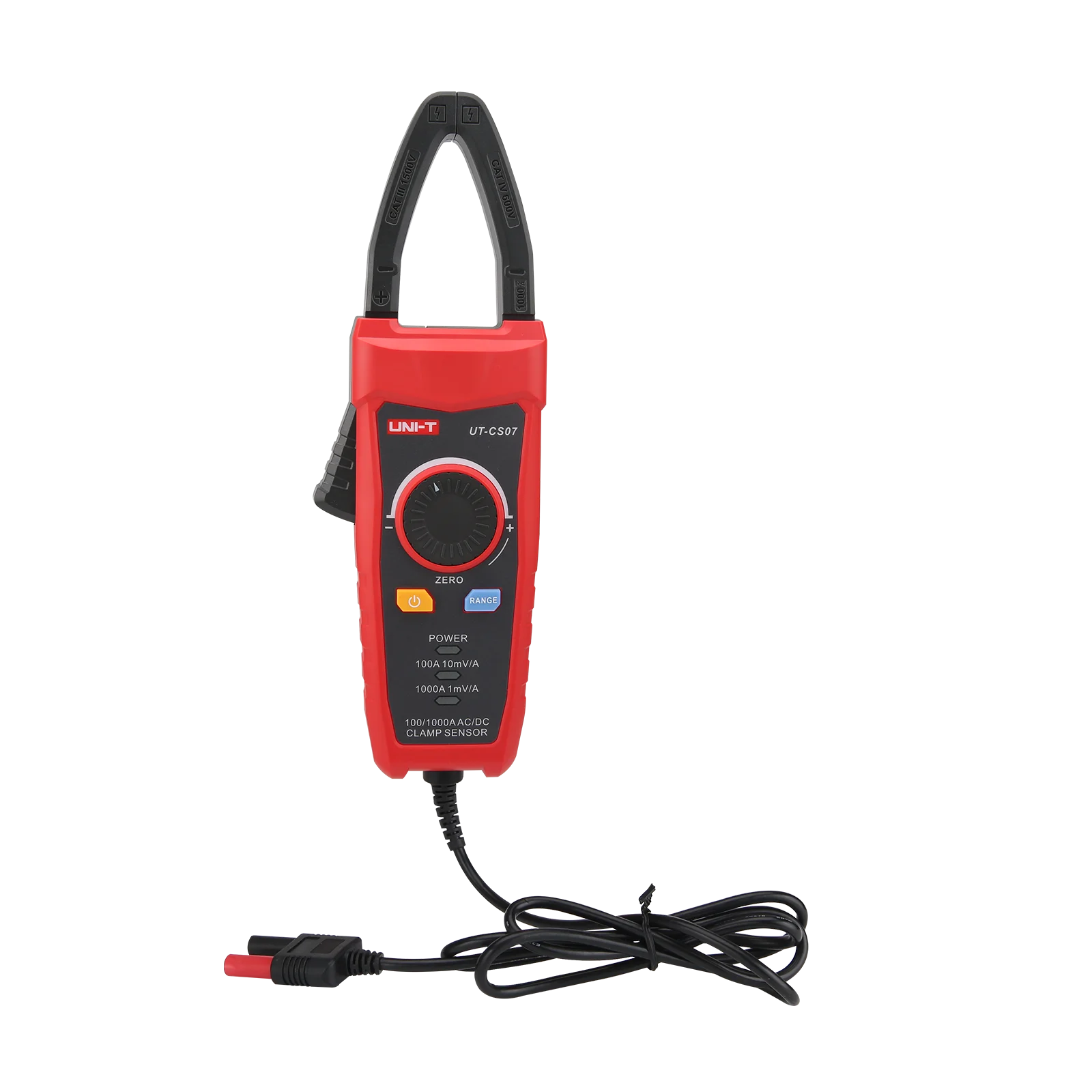

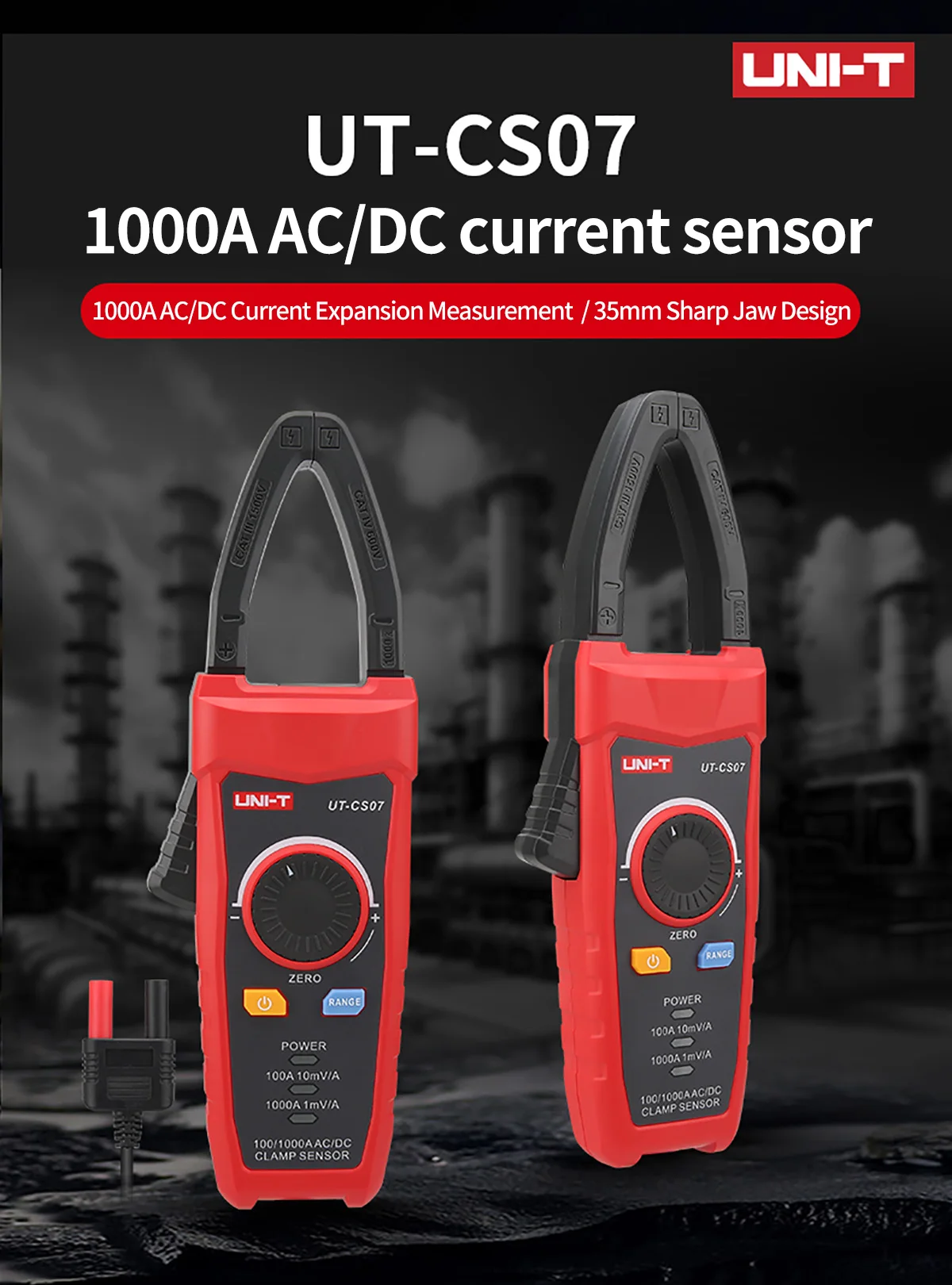

UT-CS07 1000A AC DC Clamp sensor

The UT-CS07 is a high-reliability and high-security AC/DC current sensor that can be used as an expansion device for multimeter current measurement. It measures current through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable, and the multimeter displays the corresponding voltage value. It can measure up to 1,000 A of AC/DC current. With reliable measurement accuracy and a unique appearance, it has become a practical auxiliary tool for current acquisition in electrical instruments.

Feature

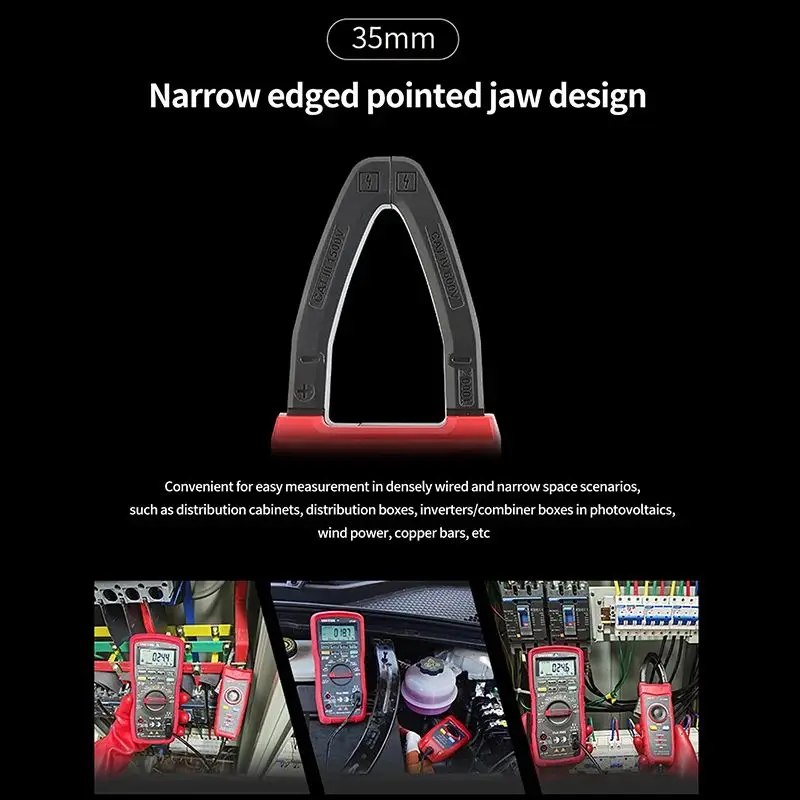

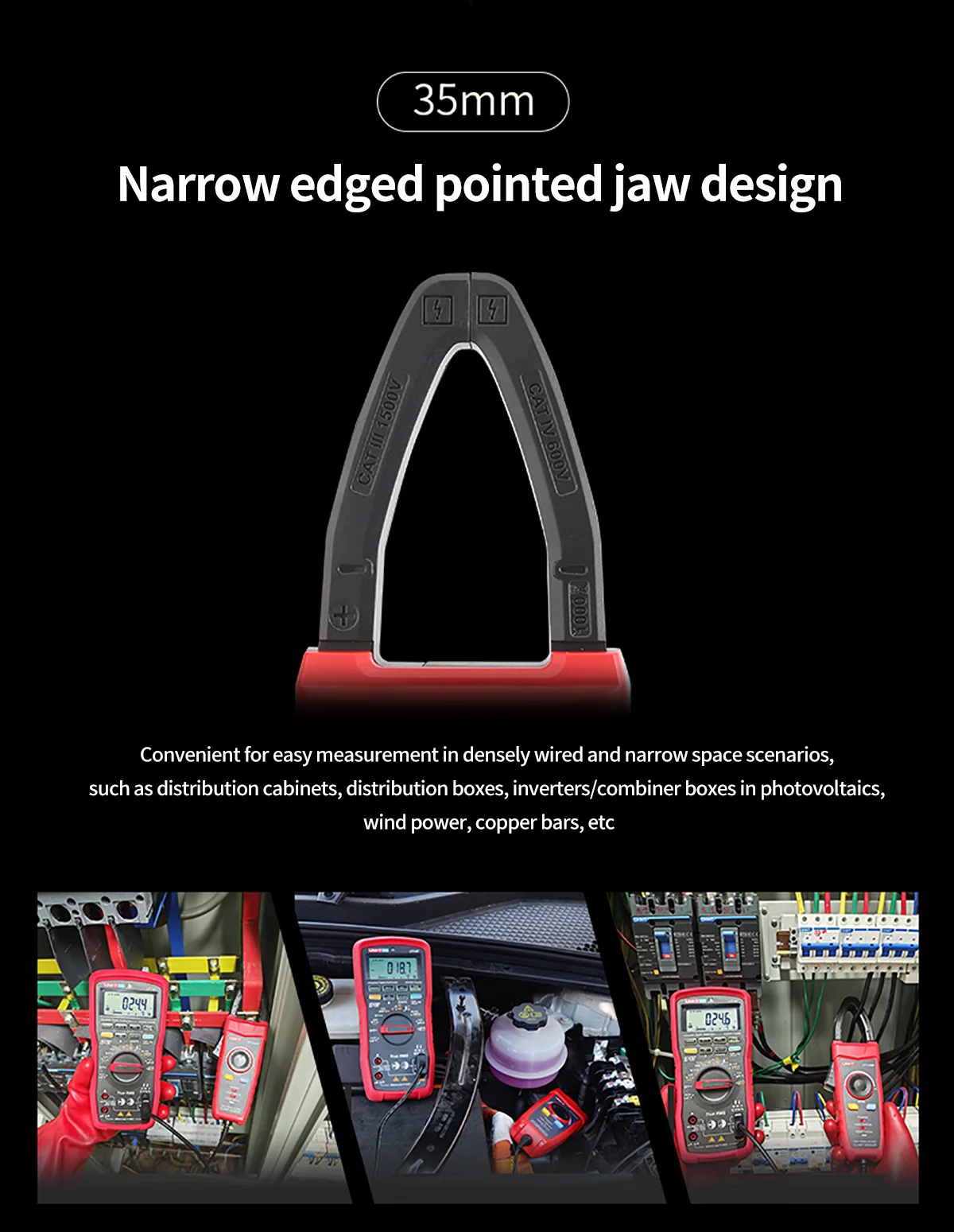

1. 35mm narrow edged pointed jaw for easy measurement in densely wired environments.

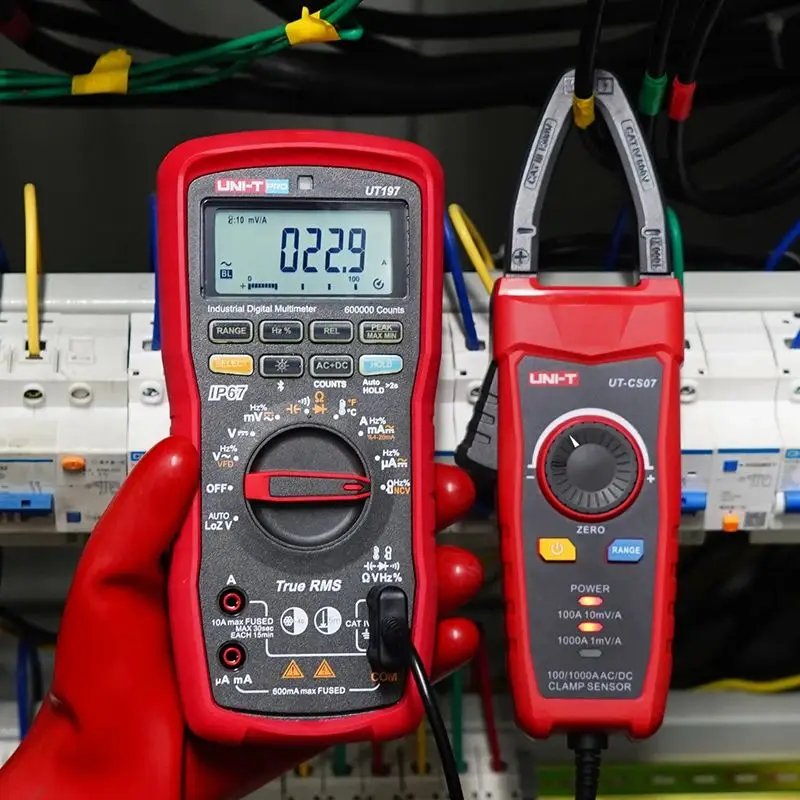

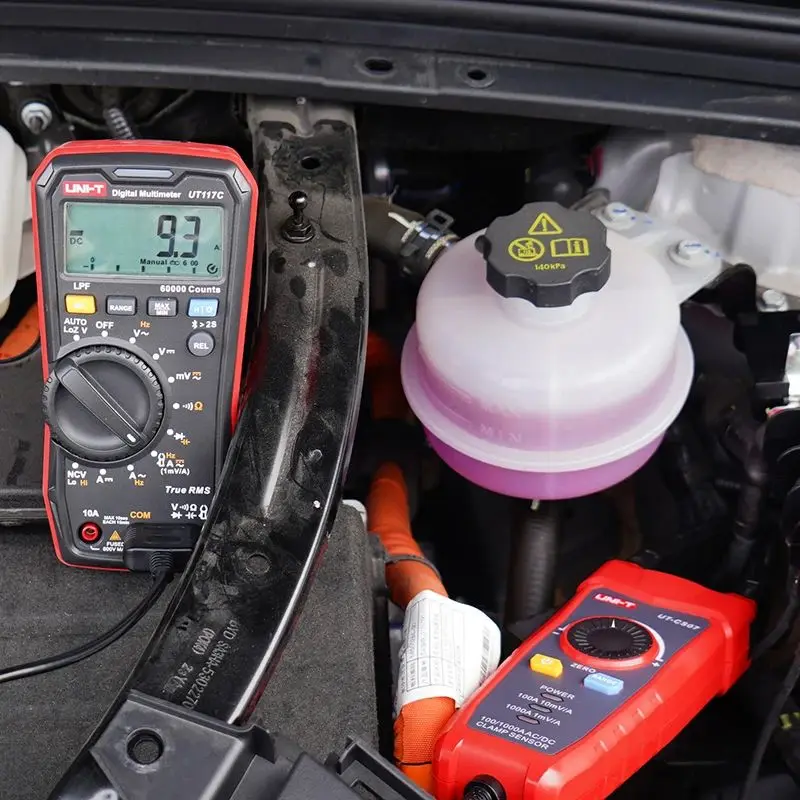

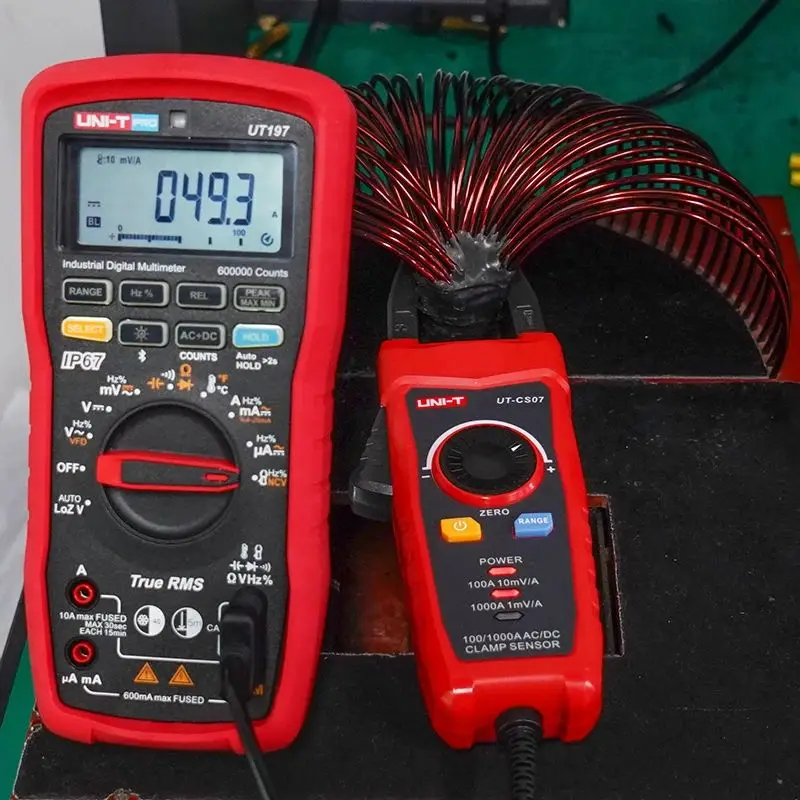

2. It can be directly paired with the current clamp of multimeters such as UT117C, UT196, UT139C, UT197, UT197PV to test the current directly.

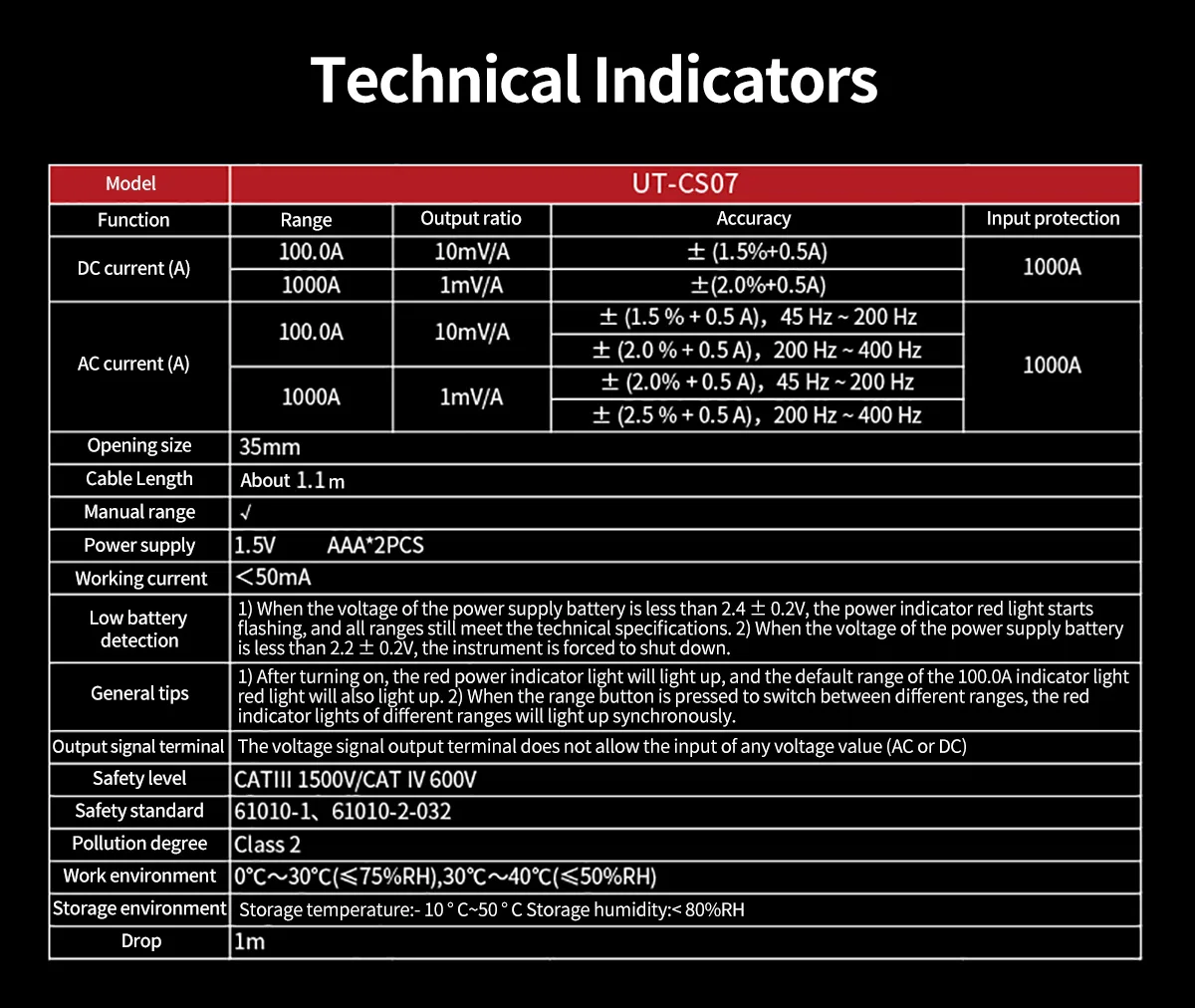

3. Can measure 1000A AC/DC current, frequency response range: 45Hz~400Hz.

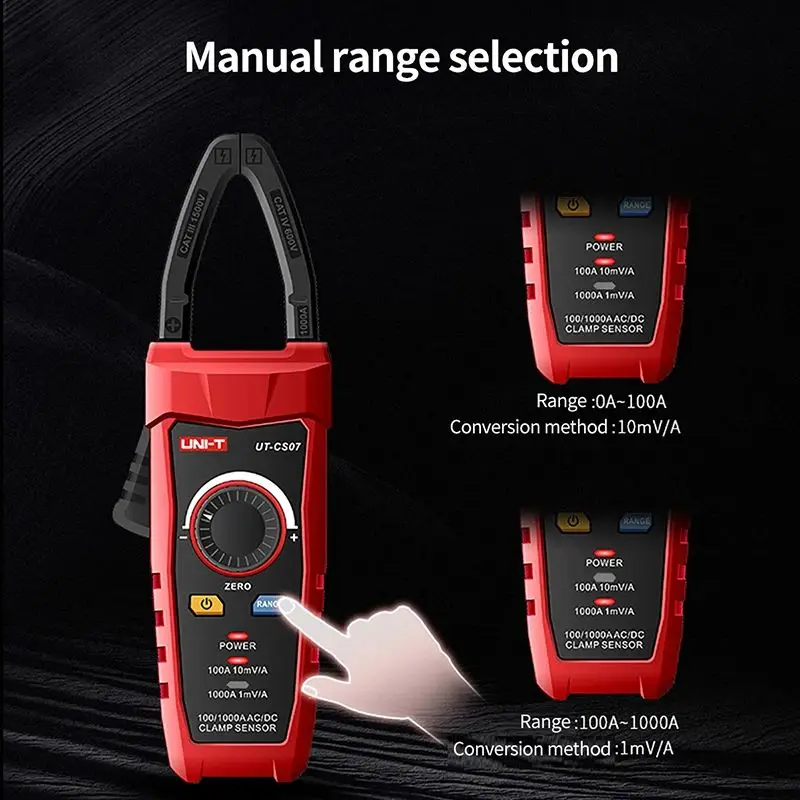

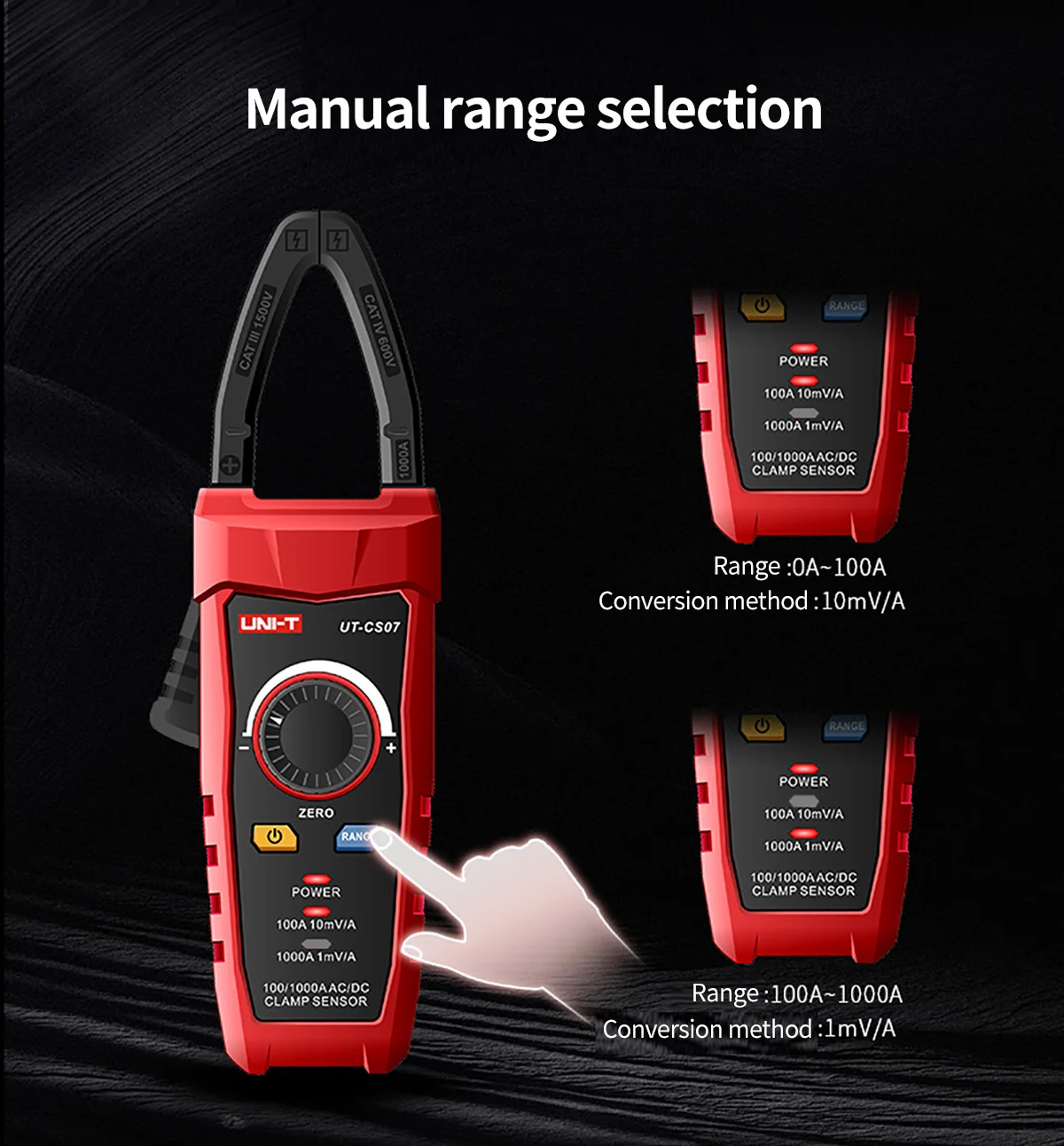

4. Conversion of measurement results: 100A gear (10mV corresponds to 1A); 1000A gear (1mV corresponds to 1A).
5. AC/DC 1000A input protection.

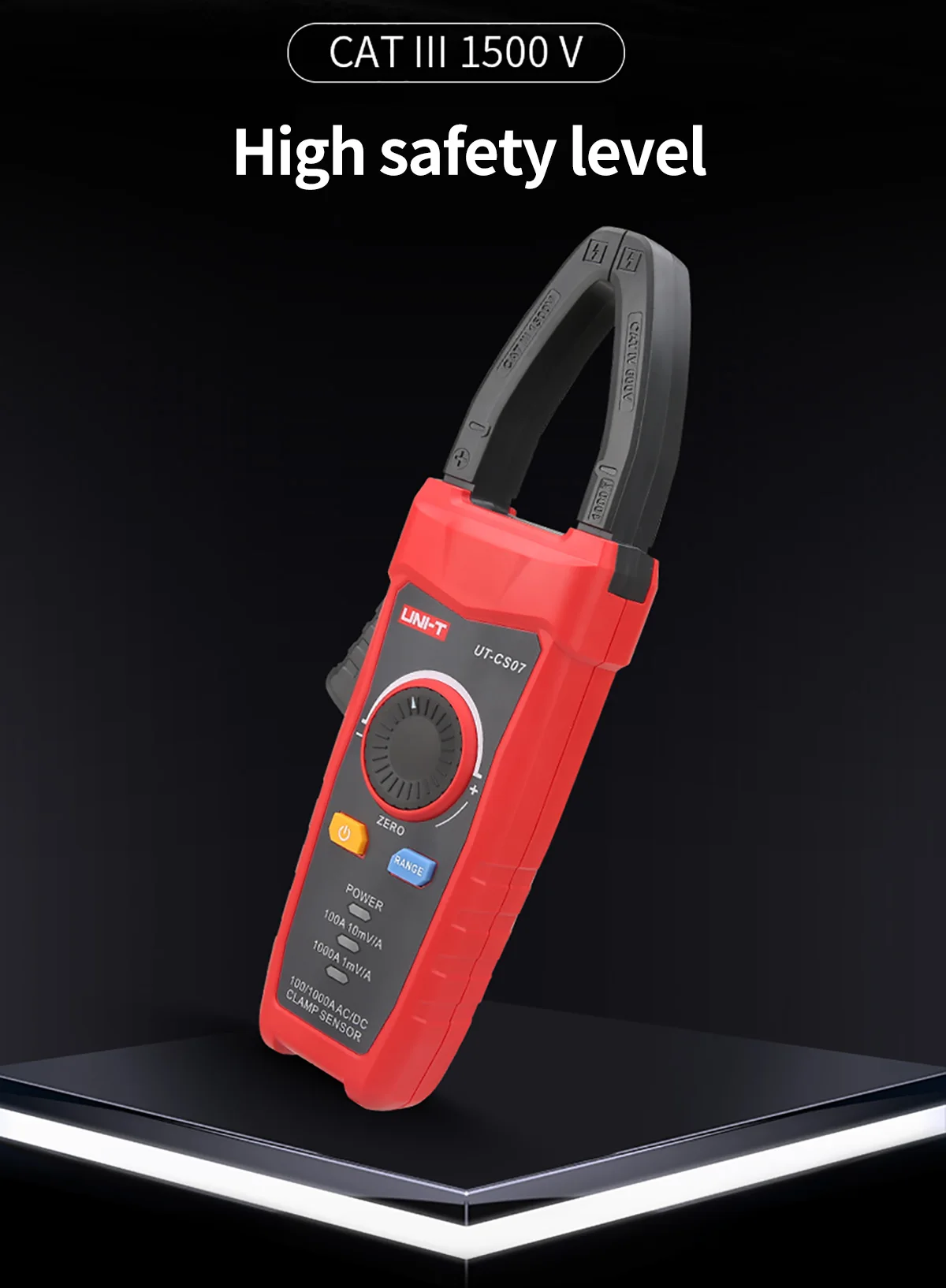

6. Security level: CATIII 1500V /CAT IV 600V.
